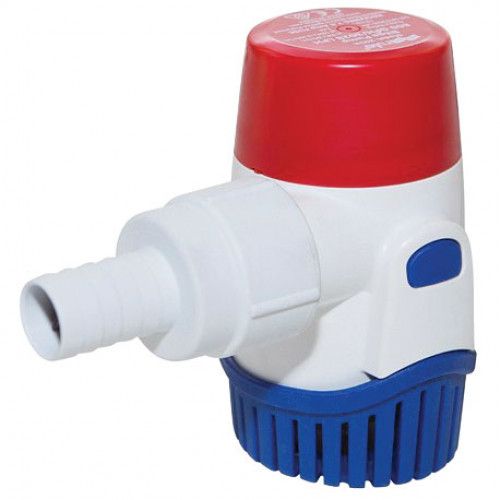

RULE SUBMERSIBLE BILGE PUMP 360GPH 12V NON-AUTO

Stock Code:
PURE-24DA
Price:
$82.80 Incl GST
In Stock
Make an Enquiry

Description

This Product Is Only Available At Our Gulf Harbour Store.

Totally submersible pump with water cooled, ignition and TCO protected motor, stainless steel shaft and snap-on strainer base.  This pump is extremely efficient, draws low current and offers high capacity output in a very compact housing, to fit into the smallest available space.  NON-Automatic pump - requires a Rule float switch to operate automatically. Please note - using the included check valve will reduce the output flow of the pump.

Features

  • Fully submersible pump - 360 US gallons per hour - 23 litres per minute @12v
  • Higher flow optimised impeller to provide greater flow at the same amperage as the previous model.
  • High efficiency, low amp draw ignition protected motor includes true Electromagnetic suppression (EMC)
  • 16 gauge tin coated copper electrical wiring with silicone infused water blocking feature - to stop water wicking down inside the wiring
  • Built-In thermal cut-out (TCO) in the motor provides additional protection for pump & vessel
  • Backflow prevention - now includes a removable check valve in the discharge nozzle which reduces the amount of water draining back from the pump discharge hose into the bilge. Please note - using the check valve will reduce the rated output flow.
  • Threaded discharge port - gives easier installation and maintenance.
  • Discharge hose port is included with each pump
  • Hidden air vents in the pump prevent air locking in challenging plumbing installations and helps with the check valve operation
  • Compact - 99mm Height x 74mm Width x 64mm depth - not including discharge
  • 3.4 amp draw @ 12v DC
  • Threaded hose outlet suits 20mm (3/4") hose. 1 x straight port provided.

Specifications

  • Height: 3.9" (99mm)
  • Width: 2.9" (74mm)
  • Depth: 2.5" (64mm) not incl discharge
  • Voltage: 12VDC
  • Amp Draw: 3.4 Amps@Max.Flow
  • Foot Print: 2.5" (64mm) x 2.25" (57mm) oval
  • Fuse Size: 4A Fuse Required (Not included)
  • Port Size: 3/4" (19mm) NPSM / 3/4" (19mm) Hose barb

Standard Features still included

  • Snap-on strainer base
  • Compact size & design to fit in the smallest places
  • Fully submersible
  • Ignition protected motors
  • Stainless steel shaft
  • Excellent colour retail clamshell packaging
